3800 NA to Supercharged Top Swap
A detailed guide to converting a naturally aspirated Series II L36 or Series III L26 3800 to an Eaton M90 supercharged top end using matching L67 or L32 components, correct sealing hardware, accessory drive, fuel system parts and PCM calibration.
DIFFICULTY
Advanced DIY
SERIES II
L36 → L67
SERIES III
L26 → L32
PCM CALIBRATION
Required
OVERVIEW
What a Top Swap Actually Changes
A conventional 3800 top swap keeps the naturally aspirated short block in the vehicle and changes the cylinder heads, lower intake manifold, supercharger, throttle body, fuel rail/injectors, MAP strategy and supercharger accessory drive to the corresponding factory supercharged layout.
The NA short block retains its higher compression ratio. That can make the engine more responsive at a given boost level, but it also leaves less detonation margin than a factory L67 or L32. Fuel quality, pulley size, exhaust restriction, intake-air temperature, injector capacity and ignition timing matter.
Important: This is not a blower-only bolt-on. The heads come off, the fuel system changes, the crank balancer/accessory drive changes, and the PCM must be recalibrated for the final combination before the car is operated under boost.
ON THIS PAGE
CHOOSE THE RIGHT DONOR
Series II and Series III Are Not the Same Swap
Series II: L36 → L67
The common 1996-2005 Series II conversion uses L67 heads, L67 lower intake, Gen 3 M90, cable-operated L67 throttle body, L67 fuel rail/injectors, supercharged balancer and the L67 supercharger-belt idler/tensioner hardware. Electronics vary by vehicle year, especially MAF and injector connectors.
Series III: L26 → L32
The 2004-2008 Series III combination uses the Gen 5 M90/L32 lower intake and drive-by-wire electronics. The 2004+ Grand Prix MAP/barometric-sensor arrangement and engine harness strategy differ from the earlier Series II cars. Keep the donor electronics, connectors and brackets together and build the tune around the exact vehicle.
PARTS
Complete Donor and Service Parts Checklist
GM superseded many 3800 part numbers over the life of the platform. The numbers below are useful verified references, but donor assemblies should still be confirmed against the exact donor year/VIN before purchase.
- Supercharged cylinder heads with valve covers and required brackets
- Matching supercharged lower intake manifold
- Eaton M90 supercharger with bypass actuator and vacuum fittings
- Matching throttle body and MAF strategy
- Matching supercharged fuel rail and fuel-pressure regulator
- Six injectors sized for the calibration
- Supercharged crankshaft balancer
- Supercharger idler standoff, idler pulleys, tensioner/brackets and hardware
- Supercharger drive belt and accessory belt as required
- MAP sensor(s), brackets, connectors and vacuum tubing
- Coil/ICM bracket and related hardware where donor-specific
- Vacuum tree, PCV hardware, boost-bypass plumbing and EVAP connections
- Correct throttle/cruise cables for Series II, or DBW electronics for Series III
- Fresh head gaskets, head bolts, LIM gaskets, supercharger gasket, throttle-body gasket and valve-cover gaskets
- Fresh injector O-rings, coolant bypass seals/elbows, coolant, oil and filter
Part-Number Reference: What Is Shared and What Changes
Most Series II and Series III 3800 top-swap service hardware is shared or directly interchangeable. The tables below intentionally list the common service items only once, then separate the components that actually change when moving from an L67/Gen 3 configuration to an L32/Gen 5 configuration.
Shared Supercharged 3800 Service Parts
| Service Part | Part Number | Notes |
|---|---|---|
| Head-bolt set | Fel-Pro ES 74033 | Common replacement TTY head-bolt kit used across many Series II/III 3.8L applications. Verify exact catalog fitment. |
| Supercharged LIM gasket kit | GM 89017825 | GM supercharged 3800 intake-manifold gasket reference. Aluminum replacement style is preferred. |
| Aftermarket aluminum LIM gasket | Fel-Pro MS 98014 T | Common metal-framed 3800 intake-gasket service set; verify exact application before ordering. |
| Fuel-injector O-ring kit | GM 12576479 | GM Series III catalog lists this injector seal kit; replace damaged or hardened O-rings whenever the rail is disturbed. |
| Aluminum coolant elbows | Dorman 47065HP | Recommended metal replacement where the application uses the original plastic elbow arrangement. |
| Coolant bypass seal | GM 24502846 | Thermostat-bypass pipe O-ring used on Series III catalog applications and many earlier 3800 installations. |
| Supercharger oil | GM 12345982 | 4-oz bottle. Eaton M90 uses dedicated supercharger oil. |
Series II L36 → L67: Parts That Are Different
Use these parts when building the conventional Series II / Gen 3 configuration.
| Component | Series II / L67 Reference | Why It Is Series-Specific |
|---|---|---|
| Supercharged cylinder heads | GM 24507848 bare service head | L67 supercharged head configuration. Injector bosses are in the heads rather than the NA lower intake. |
| Lower intake manifold | GM 24505729 | Gen 3 M90 opening and Series II supercharged layout. |
| Supercharger | Eaton Gen 3 M90 | Smaller Gen 3 inlet/outlet configuration. Best sourced as a complete L67 donor assembly. |
| Supercharger-to-LIM gasket | GM 24503911 Fel-Pro MS 95744 |
Gen 3 M90 bolt pattern and outlet shape. |
| Throttle body | GM 24507241 | Cable-operated L67 throttle body; Series II uses a 3-bolt triangular mounting arrangement. |
| Throttle-body gasket | Fel-Pro 61024 | Matches the Series II L67 throttle-body flange. |
| Fuel rail | GM 24508941 | Series II return-style supercharged fuel rail. |
| Factory injector example | GM 24508208 | Common L67 injector reference. Connector/year changes exist, so injector data must match the tune. |
| Rail-mounted fuel-pressure regulator | GM 24506988 | Series II uses the return-style rail with manifold-referenced regulator. |
| Supercharged crank balancer | GM 12563268 | Series II L67 dual-belt balancer reference. |
| Vacuum-source manifold | GM 24503488 | Common L67 vacuum distribution manifold. |
Series III L26 → L32: Parts That Are Different
The L32 top end is not just a Gen 5 blower on Series II hardware. It uses revised Series III heads/valvetrain production details, a different lower intake, drive-by-wire throttle body, returnless fuel rail, different balancer, and a different MAP/barometric-sensor arrangement.
| Component | Series III / L32 Reference | Series III Difference |
|---|---|---|
| L32 supercharged cylinder heads | GM 24507848 bare service head | Use the L32/Series III supercharged head configuration for an L26→L32 swap. Production L32 heads received Series III airflow/valve revisions and are documented as flowing slightly better than Series II. GM later catalogs the same 24507848 bare service-head number for both L67 and L32, so donor ID/year matters more than expecting a unique replacement casting number. |
| L32 valve-cover gasket | GM 24503937 | Series III catalog lists a distinct L32 rocker-cover gasket from the L26 application. |
| Lower intake manifold | GM 12603871 | Gen 5 M90 lower intake. Common earlier superseded references include 12594428 / 12574837 / 12574839 in swap documentation. |
| Supercharger | Eaton Gen 5 M90 GM service/reman references commonly documented as 89017286 / 89018119 / 89017832 |
Larger inlet/outlet and revised rotor/coating design; more efficient than the Gen 3 unit. |
| Supercharger-to-LIM gasket, 2004-2005 | GM 12574474 | Early Gen 5 M90 outlet gasket. |
| Supercharger-to-LIM gasket, 2006-2007 | GM 12584411 Fel-Pro MS 96789 |
Later Gen 5 gasket design; do not substitute the Series II Gen 3 gasket. |
| Drive-by-wire throttle body, 2004 | GM 12582615 | Electronic throttle actuator; Series III uses the 4-bolt square flange and DBW pedal/PCM strategy. |
| Later Series III throttle-body service assembly | GM 19420718 | Later catalog service assembly with throttle actuator. Verify exact 2005-2007 VIN/supersession before purchase. |
| Throttle-body seal | GM 12576730 | Series III throttle-body seal used on L32 catalog applications. |
| L32 returnless fuel rail | GM 12583223 replaces 12576415 |
Series III L32 rail is returnless and differs from the rail-mounted-regulator L67 setup. |
| Series III injector | GM 12576416 later service: 19421334 replacing 12576414 |
2004-2007 Grand Prix catalog injector references. Injector connector/calibration must match the harness and tune. |
| L32 crank balancer | GM 12563266 | Series III L32 supercharged balancer; L26 catalog uses 12563265. |
| MAP sensor, 2004 catalog | GM 19418808 | Series III uses a different MAP/barometric strategy than typical Series II L67 swaps. |
| Barometric/MAP sensor, 2004 catalog | GM 19418810 | Second sensor in the Series III pressure-sensing arrangement. |
| MAP sensor bracket | GM 12584306 | Series III bracket used with the L32 sensor arrangement. |
| Boost-bypass / fuel-pressure harness | GM 12580696 | 2004-2007 Grand Prix L32 supercharger bypass/fuel-pressure wiring sub-harness. |
Series III donor advice: When possible, buy the L32 top end as a complete donor package with heads, Gen 5 M90, LIM, throttle body, rail/injectors, balancer, brackets, MAP/barometric sensors and the related harness sections. The expensive mistakes happen when Series II and Series III electronics or fuel-system pieces are mixed without planning the PCM strategy.
TORQUE REFERENCE
Common 3800 Top-Swap Torque Specifications
Verify your exact model year before final tightening. GM changed some procedures during Series II production, especially cylinder-head torque-angle steps and some exhaust-manifold fasteners. The table below is a working reference, not permission to ignore the factory service procedure for your donor/vehicle combination.
| Fastener / Component | Specification | Procedure / Notes |
|---|---|---|
| Cylinder-head bolts | 50 N·m (37 lb-ft) + angle | Common later Series II/III procedure is +120° in sequence. Some earlier service data adds a further +30° on the four center bolts or specifies a different final angle. Use new TTY bolts and the exact year-specific sequence. |
| Valve rocker-arm bolt | 15 N·m (11 lb-ft) + 90° | Factory-style torque-angle procedure. Follow the service-manual tightening sequence. |
| Lower intake manifold bolts | 15 N·m (11 lb-ft) | Tighten in the specified center-out sequence. Use sealant only where the factory/service-gasket instructions require it. |
| Gen 3 / Gen 5 M90 supercharger bolts | 23 N·m (17 lb-ft) | Start near the center and work outward. Install the gasket dry unless the gasket/service procedure states otherwise. |
| Throttle-body nuts/bolts, common Series II | 10 N·m (89 lb-in) | Do not overtighten the aluminum casting. |
| Fuel-rail retaining nuts | 10 N·m (89 lb-in) | Ensure injectors are fully seated and O-rings are not pinched before tightening. |
| Fuel-rail studs | 25 N·m (18 lb-ft) | If removed from the intake manifold. |
| Valve-cover bolts | 10 N·m (89 lb-in) | Tighten evenly; overtightening can distort covers/gaskets. |
| MAP sensor bolt, VIN 1 reference | 3 N·m (27 lb-in) | Small fastener. Do not strip the housing. |
| MAP sensor bracket bolt | 30 N·m (22 lb-ft) | Common Series II supercharged reference. |
| Idler pulley bolt | 50 N·m (37 lb-ft) | Verify the exact pulley/bracket and thread direction before tightening. |
| Idler pulley bracket bolt | 30 N·m (22 lb-ft) | Common 3800 reference. |
| Crankshaft balancer bolt | 150 N·m (111 lb-ft) + 76° | Hold the flexplate/flywheel with the proper tool. Use the correct replacement fastener/sealant procedure. |
| Spark plugs | 27 N·m (20 lb-ft) | Reference for factory-style plugs in clean dry threads. Follow plug-manufacturer guidance if it differs. |
| Exhaust manifold bolt/nut, general reference | 30 N·m (22 lb-ft) | Year-specific Series II charts show differences for some front manifold positions. Verify exact year. |
TOOLS
Tools and Supplies to Have Ready
Essential
- Metric socket and wrench set
- Breaker bar
- Torque wrench
- Torque-angle gauge
- Extensions and swivels
- Fuel-line disconnect tools
- Hose-clamp pliers
- Drain pans
Balancer / Engine Service
- 3800-compatible harmonic-balancer puller
- Flywheel/flexplate holding tool
- Plastic gasket scrapers
- Thread chaser / correct taps
- Compressed air where safe
- Shop vacuum
- Clean engine oil for assembly where specified
Diagnostics / Tuning
- Scan tool capable of live data logging
- Wideband oxygen sensor strongly recommended
- Fuel-pressure gauge
- Battery charger/maintainer
- Laptop/tuning interface as applicable
- Factory service information for the exact vehicle and donor year
INSTALLATION
Detailed Top-Swap Procedure
This sequence is intended to keep the project organized. Use the factory service manual for your exact vehicle for removal details, bolt sequences, sealant locations and any model-specific clearance steps.
01 — Inventory the donor top end.

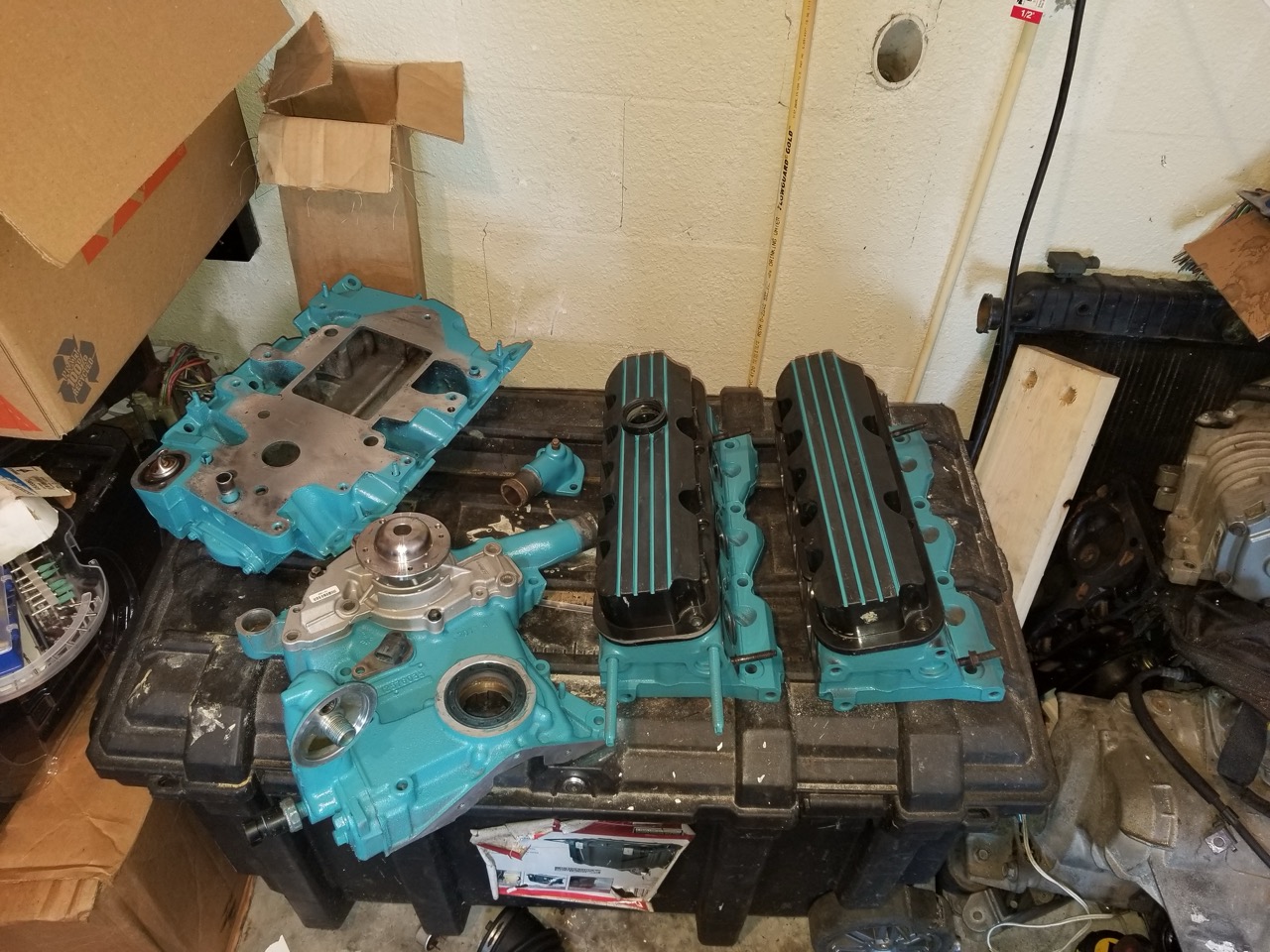

Before disassembly, lay out the supercharged heads, lower intake, M90, throttle body, rail, injectors, balancer, idler standoff, pulleys, brackets, MAP hardware, vacuum fittings, bypass actuator and wiring. Photograph the donor routing if possible. Replace damaged pulley bearings, cracked vacuum fittings and questionable injector O-rings now.
02 — Relieve fuel pressure, disconnect the battery and drain coolant.
Disable the fuel pump and relieve pressure using the vehicle’s service procedure. Disconnect the negative battery cable. Drain the cooling system into a clean pan. Do not perform a fresh oil change before the swap because the oil should be changed again after the heads/intake are installed.
03 — Remove intake ducting, throttle connections and fuel rail.
Disconnect the intake ducting, MAF/IAT, throttle and cruise cables on Series II or DBW connections on Series III, vacuum/EVAP hoses and the fuel feed/return arrangement. Remove the rail and injectors carefully. Cap open fuel lines and keep dirt out of the injector ports.
04 — Remove the NA upper/lower intake and accessory hardware.
Remove the NA upper intake/plenum, lower intake manifold and the brackets or belt-drive parts that block access to the cylinder heads. Label fasteners by component. If the cooling elbows or bypass seals are disturbed, replace them rather than reusing hardened seals.
05 — Remove the exhaust manifolds/crossover as required and remove the cylinder heads.
Remove enough exhaust hardware to free the heads. Remove the valve covers, rocker arms and pushrods. Keep pushrods organized by original position if they will be reused. Loosen head bolts gradually using the proper sequence until they can be removed by hand. Discard torque-to-yield head bolts.
Surface preparation: Protect cylinders and oil/coolant passages before cleaning. Remove old gasket material without gouging aluminum/iron surfaces. Clean head-bolt holes and verify they are free of coolant, oil, corrosion and debris. Contamination in a blind or wet hole can change torque readings or damage the block.
06 — Install supercharged head gaskets and heads.
Confirm gasket orientation before setting the heads in place. Do not slide a head around on the gasket. Install new head bolts with the sealant/lubrication specified by the fastener or service information. Tighten in the factory sequence. The common later procedure starts at 50 N·m (37 lb-ft) followed by a torque-angle pass, but the required final angle varies by model year. Verify the exact service procedure before performing the angle step.
07 — Reinstall pushrods, rocker arms and valve covers.
Verify every pushrod is in the correct intake/exhaust location and seated in the lifter before installing the rocker. For factory-style rocker bolts, the common specification is 15 N·m (11 lb-ft) plus 90°. Rotate the engine by hand after the valvetrain is assembled and investigate any abnormal resistance.
08 — Install the supercharged lower intake manifold.
Fit the correct L67 or L32 intake gaskets and end seals. Apply RTV or pipe sealant only where required by the gasket manufacturer’s instructions or GM service procedure. Set the intake straight down without shifting the gaskets. Tighten the LIM bolts in the correct center-out sequence to the applicable specification; the common 3800 reference is 15 N·m (11 lb-ft).
09 — Install the M90 supercharger.
Clean both mating surfaces and install the correct Gen 3 or Gen 5 supercharger gasket. Do not add sealer to a gasket specified for dry installation. Lower the supercharger squarely onto the intake. Tighten the bolts from the center outward; 23 N·m (17 lb-ft) is the common factory supercharger fastener specification.
10 — Install fuel injectors and supercharged fuel rail.
Install new injector O-rings, lightly lubricated with an O-ring-safe lubricant or clean engine oil as appropriate. Push injectors squarely into the heads/rail without cutting the seals. Seat the rail evenly. Common fuel-rail retaining-nut torque is 10 N·m (89 lb-in). Reconnect the regulator vacuum/boost reference so it sees manifold pressure.
11 — Replace the NA crank balancer with the supercharged balancer.
Remove the accessory belt and gain access to the balancer. Hold the flexplate/flywheel using the correct holding method and pull the balancer with a 3800-compatible puller. Lightly lubricate the crank snout/balancer bore as specified during installation. The common GM balancer procedure is 150 N·m (111 lb-ft) plus 76°. This is a high-load torque-angle fastener, so use the correct bolt and procedure.
12 — Install the supercharger idler/tensioner hardware and belts.
Install the L67/L32 standoff, brackets, idlers and tensioner in the correct locations. Confirm pulley grooves line up with the supercharger pulley and balancer before installing the belt. A misaligned pulley will destroy a belt quickly. Verify any reverse-thread idler hardware before applying torque.
13 — Install throttle body, MAP hardware and vacuum/PCV plumbing.
Series II swaps normally use the cable-operated L67 throttle body and associated sensors. Series III uses drive-by-wire hardware and a different MAP/barometric sensor strategy. Route boost-bypass, fuel-pressure-regulator, MAP, PCV and EVAP plumbing to match the donor architecture and the PCM calibration. Do not leave the fuel-pressure regulator without a manifold pressure reference.
14 — Complete cooling, intake and exhaust connections.
Reconnect coolant bypass hardware with new seals, heater hoses, radiator hoses and the thermostat housing as needed. Install the intake ducting and ensure the MAF is oriented correctly. Reconnect the exhaust manifolds/crossover/downpipe. A freer-flowing exhaust is helpful for knock control, but it does not replace correct tuning.
15 — Final mechanical inspection before fluids.
Check every fuel fitting, injector clip, vacuum hose, coolant connection, ground strap, harness connector, plug wire, pulley, belt, fastener and tool location. Verify the throttle opens/closes correctly and that nothing can contact the supercharger belt. Refill coolant and install fresh engine oil and a new filter.
FIRST START
Prime and Inspect Before Cranking
- Cycle the fuel pump and inspect every injector and rail connection for leaks.
- Confirm the correct top-swap calibration is already loaded.
- Crank only after fuel, coolant, wiring and belt routing have been checked again.
- Verify oil pressure immediately after startup.
- Watch coolant temperature and charging voltage.
- Listen for vacuum leaks, valvetrain noise and belt tracking problems.
- Bleed air from the cooling system and recheck coolant after a complete cooldown.
- Scan DTCs and review idle fuel trims before any road test.
CRITICAL
Do Not Test Boost on an NA Calibration
The stock L36/L26 calibration is not configured for the supercharged airflow model, boosted load, injector data or required spark/fueling strategy. A car that starts, idles and revs in the driveway can still be dangerously lean or over-advanced under load.
TUNING & RELIABILITY
Build Around Data, Not Pulley Size
Knock Retard
Log knock retard and intake-air temperature. The NA short block’s higher compression means a pulley/timing combination that works on a stock L67/L32 should not automatically be copied to a top-swapped engine.
Fuel System
Verify injector characterization, fuel pressure and injector duty cycle. Larger injectors alone do not solve an undersized pump, incorrect injector data or a tune that commands unsafe fueling.
Transmission
The added torque increases 4T65-E load. Transmission condition, line pressure/shift calibration, fluid temperature and driving style become more important as power rises. A top swap does not turn an NA transmission into a factory HD unit.
QUICK ANSWERS
Common Questions
Can I bolt an M90 directly to an L36/L26 intake?
Not as a conventional factory top swap. The factory supercharged arrangement uses a different lower intake, supercharged-head injector arrangement and dedicated belt drive.
Do I need L67/L32 heads?
For the factory-style conversion in this guide, yes. Specialized aftermarket or custom-manifold approaches are a different build.
Do I need new lifters?
Not automatically. The heads are already off, so inspect the lifters and valvetrain. Replace worn or suspect parts rather than treating lifter replacement as a required top-swap component.
Should I install a smaller pulley immediately?
No. Begin conservatively and tune/log the engine before increasing blower speed. Knock, air temperature, fuel delivery, exhaust restriction and the tune determine safe pulley size.
Is a full L67/L32 engine swap better?
It depends on donor availability and goals. A healthy NA short block can make a good top-swap foundation, while a complete supercharged engine gives you the factory lower-compression short block and may make more sense for higher-output builds.
HELP BUILD THE W-BODY KNOWLEDGE BASE
Building a Top-Swapped 3800?
Use the official support thread for confirmed donor combinations, corrections, part-number supersessions, tuning notes and completed builds. Discord is best for live help; the forum keeps the solution searchable for the next W-Body owner.
